Isomerization Units of Bandar Abbas Gas Condensate Refinery

Scope of Work:
– Detail engineering, procurement services, project control, planning for 3 isomerization units.
– Client: Persian Gulf Star Oil Co.
– Technology Provider: UOP
– Duration: 60 Months
– Project Progress: 99.62 %
– Major Activities:

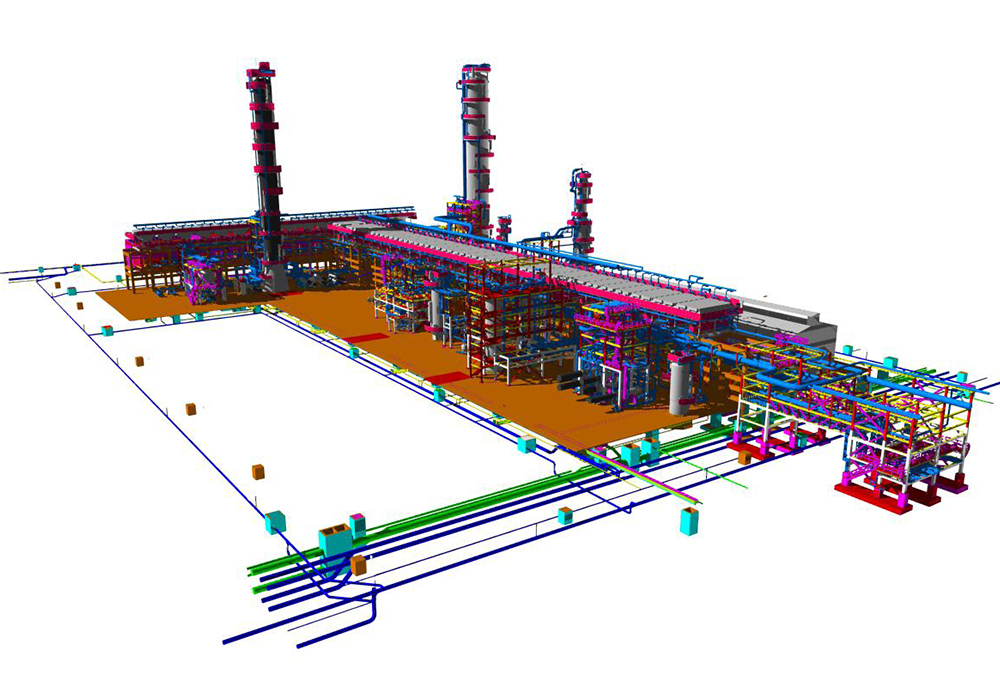

– Detail design (process, civil , piping, mechanical, electrical , control, safety, telecom, Hazop, modeling ..)
– Procurement engineering services , Review of Vendor documents.
– Planning & project control.
– Field engineering and Site supports
– Project Key Figures :

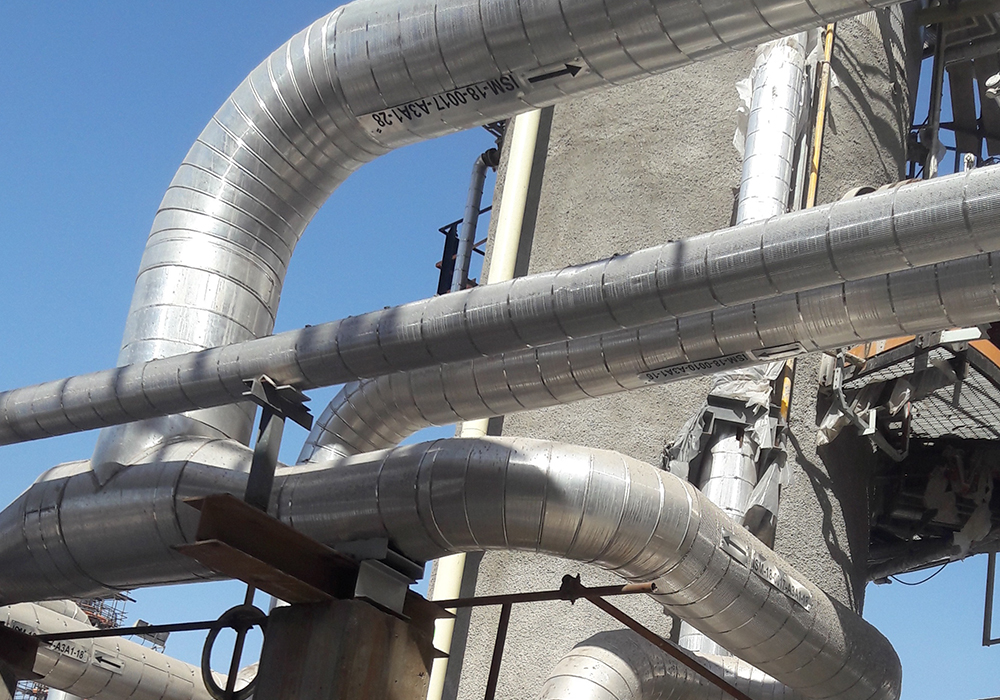

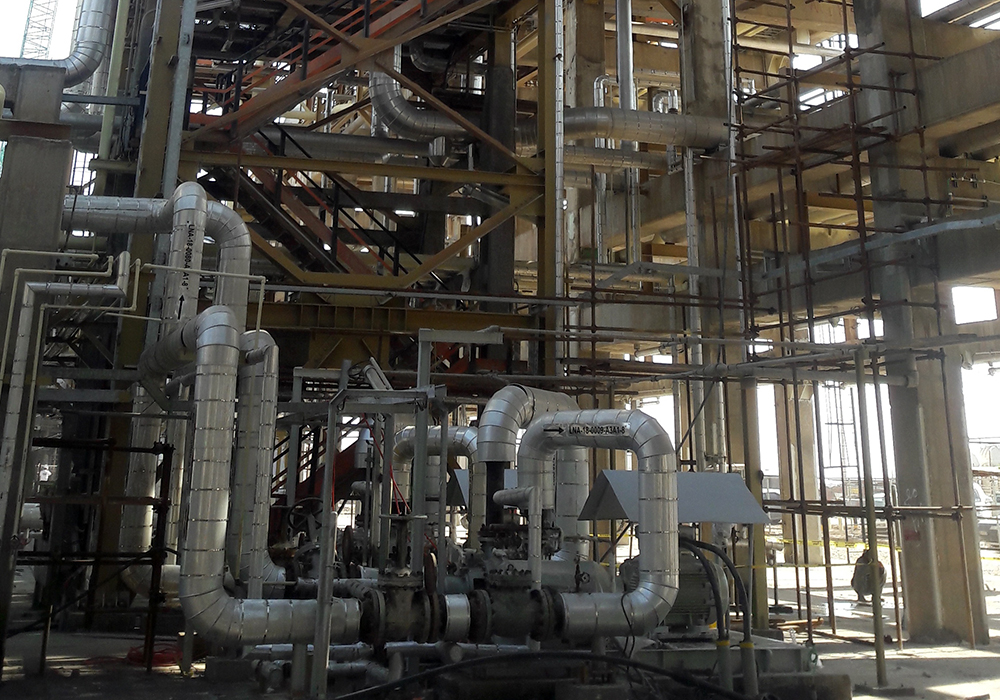

– Piping(each train): 1850 Lines , 250000 Dia/Inch
– Equipment(each train): 94 , including : 4 compressors,26 pumps,7 columns/reactors, 17 Vessels ,39
Exchanger/Cooler, …
– Steel Structure(each train): 19 No. , 1900 tons excluding piperack
– Civil(each train): 15000 m3 concrete volume
– Electrical /Instrument(each train): 8 MW , 3300 I/O’s (including FF)
